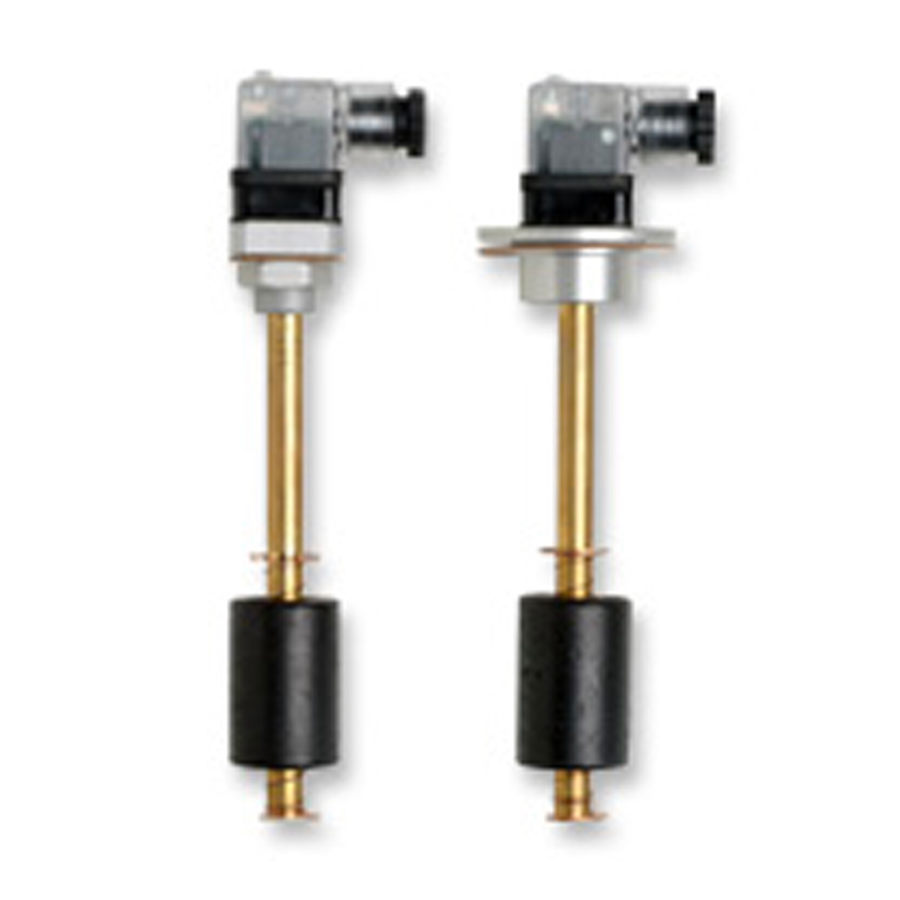

LM1 LA – LFA – Level switches with LED
DOWNLOAD PDF
REQUEST AN OFFER
SHOP Line level ready for delivery
- - PTE250GAIWDR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - 1% ACCURACY - MINI DIN 43650 FORM C CONNECTOR - G1/4" PARALLEL THREAD
- - PTE250GAIWMR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE200GAIWMR14 ELECTRONIC TRANSDUCER 0-200 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE100GAIWMR14 ELECTRONIC TRANSDUCER 0-100 BAR 4-20ma - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAIWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAVWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 0-10V - RELATIVE PRESSURE - 1% ACCURACY - M12 CONNECTOR
| Body material | Brass |
| Float material | NBR |
| Mounting material | Anodized aluminium |
| Actuation point | 1 with NC contacts |
| Mounting | LA – Thread M18x1,5 / LFA – Flange Ø 52 |
| Electrical connection | DIN 43650 – PG09 – IP65 |
| Switching capacity | 60W/VA |
| Current | 0.8A (resistive) |
| Voltage | 220V – 50Hz |
| Temperature range | -10°C +80°C |
| Max. pressure | 10 bar |
| Fluid specific gravity | 0.7 kg/dm3 |
| Fluid viscosity | 150 cSt |
| Size | Max. lenght1500 mm |
