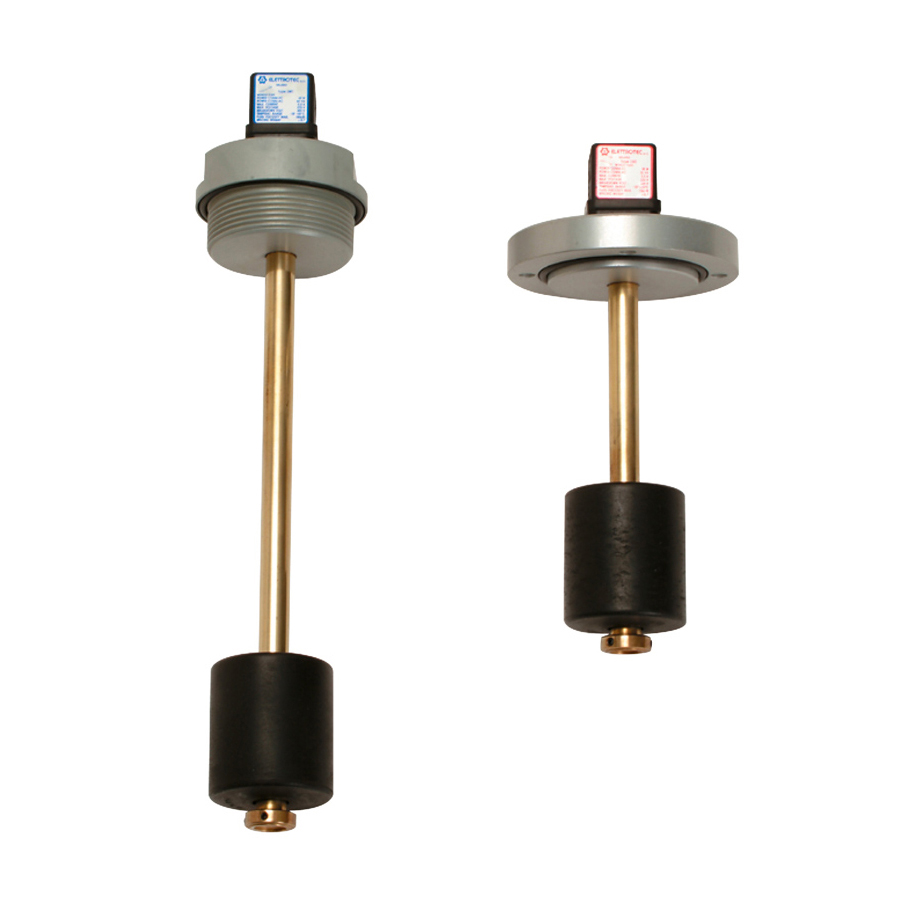

LM1 / LM2 / LMM1 GA – GTA – Level switches

Livellostati

REQUEST AN OFFER

SHOP

ACQUISTA ORA!

Line level ready for delivery

- PTE250GAIWDR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - 1% ACCURACY - MINI DIN 43650 FORM C CONNECTOR - G1/4" PARALLEL THREAD
- PTE250GAIWMR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- PTE200GAIWMR14 ELECTRONIC TRANSDUCER 0-200 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- PTE100GAIWMR14 ELECTRONIC TRANSDUCER 0-100 BAR 4-20ma - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- PTE10GAIWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- PTE10GAVWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 0-10V - RELATIVE PRESSURE - 1% ACCURACY - M12 CONNECTOR

Body material	Brass
Float material	NBR
Mounting material	Anodized aluminium
Actuation point	LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO
Mounting	GA – Flange Ø 92 / GTA – Thread G2”
Electrical connection	DIN 43650 – PG09 – IP65
Switching capacity	LM1/LMM1 – 60W/VA / LM2 – 30W/VA
Current	LM1/LMM1 – 0.8A (resistive) / LM2 – 0.5A (resistive)
Voltage	220V – 50Hz
Temperature range	-10°C +80°C
Max. pressure	10 bar
Fluid specific gravity	0.7 kg/dm³
Fluid viscosity	150 cSt
Certification	RINA – Lloyd’s Register – Germanischer Lloyd
Size	Max. lenght 2500 mm
