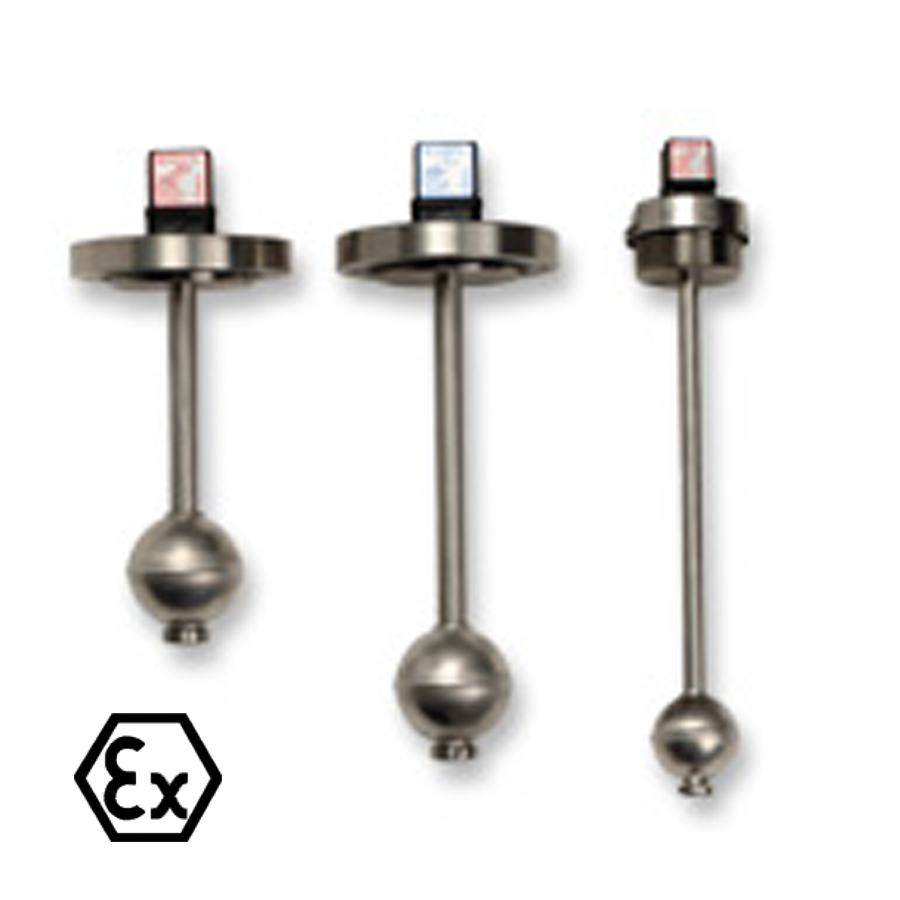

LM1 / LM2 / LMM1 GIA – GTIA XIA – Stainless steel level switches intrinsic safety execution
DOWNLOAD PDF
REQUEST AN OFFER
SHOP ACQUISTA ORA!Line level ready for delivery
- - PTE250GAIWDR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - 1% ACCURACY - MINI DIN 43650 FORM C CONNECTOR - G1/4" PARALLEL THREAD
- - PTE250GAIWMR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE200GAIWMR14 ELECTRONIC TRANSDUCER 0-200 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE100GAIWMR14 ELECTRONIC TRANSDUCER 0-100 BAR 4-20ma - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAIWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAVWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 0-10V - RELATIVE PRESSURE - 1% ACCURACY - M12 CONNECTOR
| Body material | Stainless steel AISI 316 |
| Actuation point | LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO |
| Mounting | GIA – Flange Ø 92 GTIA – Thread G2″ |
| Electrical connection | DIN 43650 – PG09 – IP65 |
| Input capacity | Ci ~= 0 |
| Input induttance | Li ~= 0 |
| Input current | Ii 215mA |
| Max. input power | Pi 0,75W |
| Input voltage | Vi 30V |
| Temperature range | -30°C +60°C |
| Max. pressure | 10 bar |
| Fluid specific gravity | 0.7 kg/dm3 |
| Fluid viscosity | 150 cSt |
| Certification | ATEX – II 1 G Ex ia IIC T6 |
| Size | Max. lenght 2500 mm |
| Safety parameters | intrinsic |
| Note | Current and power values refer to a single switch connection or to the sum of the whole connected switches |
