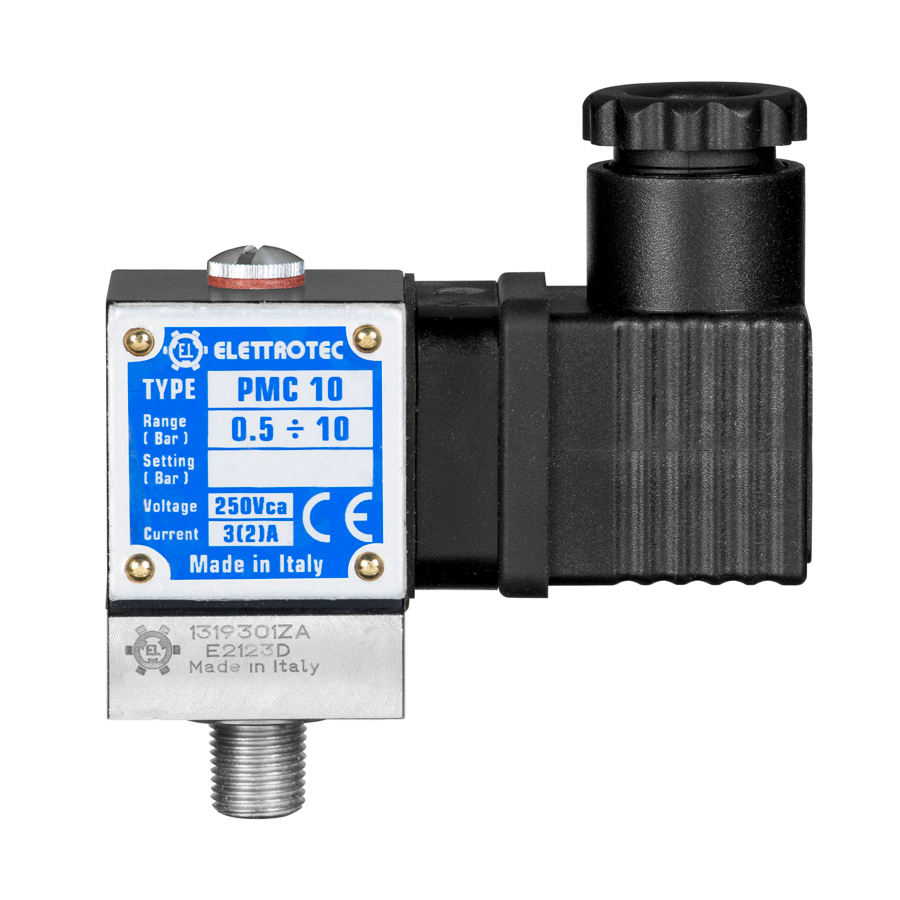

PMC / PMC…D – Adjustable pressure switches with SPDT contacts
DOWNLOAD PDF
REQUEST AN OFFER
SHOP Line pressure ready for delivery
- - PTE250GAIWDR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - 1% ACCURACY - MINI DIN 43650 FORM C CONNECTOR - G1/4" PARALLEL THREAD
- - PTE250GAIWMR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE200GAIWMR14 ELECTRONIC TRANSDUCER 0-200 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE100GAIWMR14 ELECTRONIC TRANSDUCER 0-100 BAR 4-20ma - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAIWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAVWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 0-10V - RELATIVE PRESSURE - 1% ACCURACY - M12 CONNECTOR
| Switch rating | 250 Vac, 24 Vdc; 30 V with “G” option / 3 (2) A |
| Connector | DIN 43650 form A PG09 or PG11 |
| Adjustment range | 0.2 – 2 bar – 0.5 – 5 bar – 1 -10 bar – 5 – 25 bar – 25 – 80 bar |
| Max. static pressure | 350 bar |
| Hysteresis | 30% of set-point |
| Temperature tange | -30 °C +140 °C (according to diaphragm/seal material) |
| Contact | SPDT |
| Body material | AVP steel – Stainless steel |
| Diaphragm/ Seal material | NBR – FKM – HNBR – Silicone – Neoprene – EPDM |
| Threads | G1/8 BSPT – G1/4 BSPT |
| Protection | IP65 DIN 40050 |
| Dimensions | Body 30 x 30 – Max. high75 mm |
| Certification | CE – RINA – Lloyd’s Register – ATEX – UR |
| Options | Snubber for pressure picks – Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen – Tested for applications with gas – Microswitch for – Led for – Connector – Execution with 2 |
