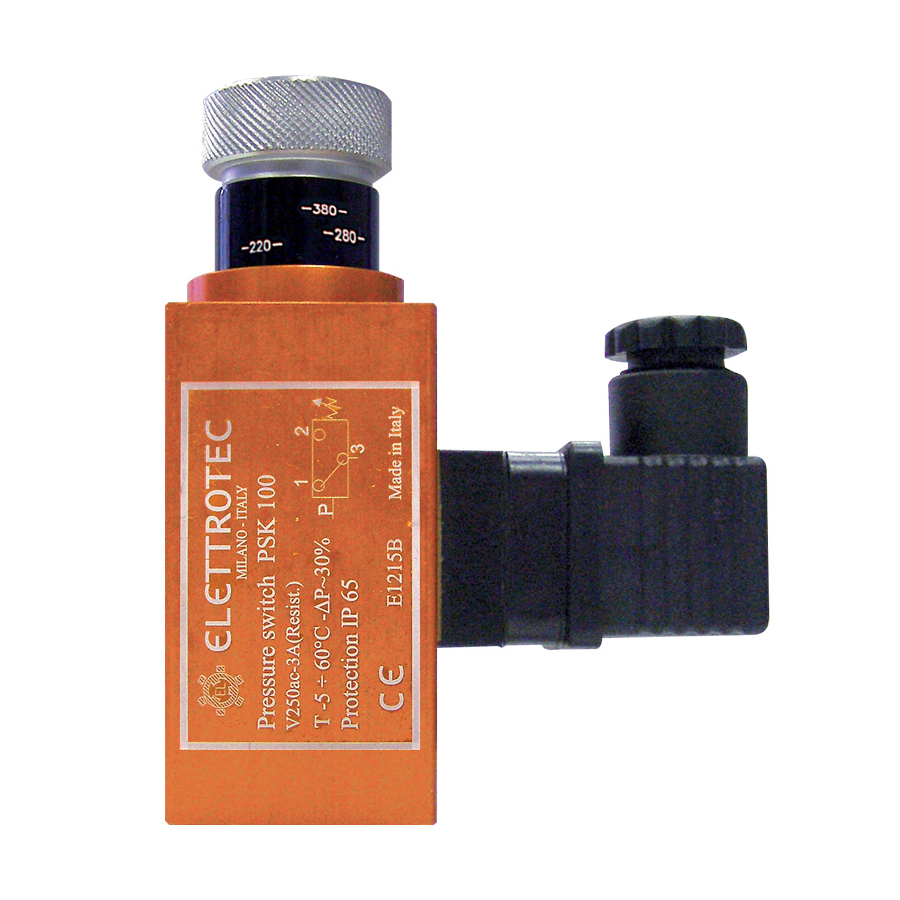

PSK – Adjustable pressure switches with graduated knob

Pressostati regolabili con manopola graduata

REQUEST AN OFFER

SHOP

ACQUISTA ORA!

Line pressure ready for delivery

- PTE250GAIWDR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - 1% ACCURACY - MINI DIN 43650 FORM C CONNECTOR - G1/4" PARALLEL THREAD
- PTE250GAIWMR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- PTE200GAIWMR14 ELECTRONIC TRANSDUCER 0-200 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- PTE100GAIWMR14 ELECTRONIC TRANSDUCER 0-100 BAR 4-20ma - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- PTE10GAIWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- PTE10GAVWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 0-10V - RELATIVE PRESSURE - 1% ACCURACY - M12 CONNECTOR

Switch rating	250 Vac
Electrical connection	DIN 43650
Working range	1 – 10 bar – 10 – 100 bar – 50 – 150 bar – 100 – 360 bar
Max. static pressure	30 bar, 600 bar (according to possible pressure range and body material)
Hysteresis	30% of set-point
Temperature tange	-25 °C +140 °C (according to diaphragm/seal material)
Contact	SPDT
Body material	Yellow anodized aluminium – Aluminium – Stainless steel
Diaphragm/ Seal material	NBR – FKM – HNBR
Threads	G1/4
Protection	IP65 DIN 40050
Mechanical life	10⁶ operations
Dimensions	Body 40 x 40 – Max. height 108 mm
Certification	CE – UR
Options	Set-point rising and falling – Gold-plated contacts for low current
