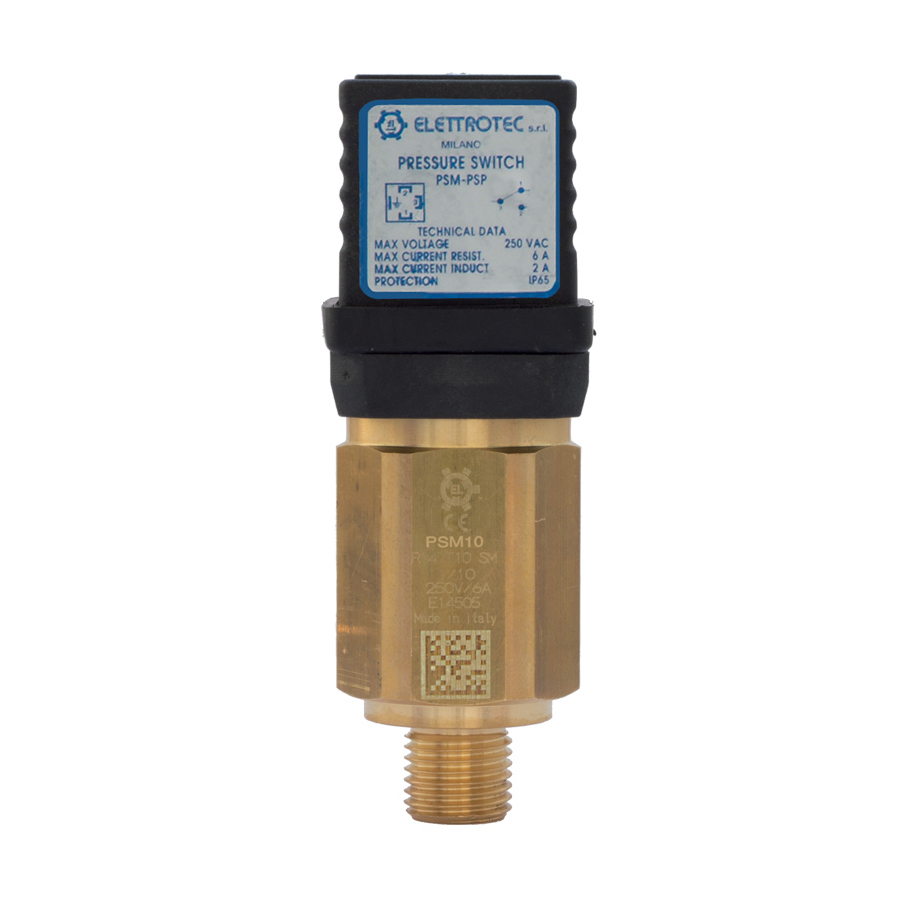

PSM-PSP – Adjustable pressure switches with SPDT contacts and adjustable hysteresis
DOWNLOAD PDF
REQUEST AN OFFER
SHOP ACQUISTA ORA!Line pressure ready for delivery
- - PTE250GAIWDR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - 1% ACCURACY - MINI DIN 43650 FORM C CONNECTOR - G1/4" PARALLEL THREAD
- - PTE250GAIWMR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE200GAIWMR14 ELECTRONIC TRANSDUCER 0-200 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE100GAIWMR14 ELECTRONIC TRANSDUCER 0-100 BAR 4-20ma - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAIWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAVWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 0-10V - RELATIVE PRESSURE - 1% ACCURACY - M12 CONNECTOR
| Switch rating | 6 (2) A / 250 Vac |
| Electrical connection | DIN 43650 – PG09 or PG11 |
| Working range | 0.2 – 2 bar – 1 – 10 bar – 10 – 50 bar – 10 – 100 bar – 30 – 150 bar – 50 – 300 bar |
| Max. static pressure | 300 bar, 600 bar (according to possible pressure range and body material) |
| Hysteresis | From 10% to 30% of set-point value |
| Temperature tange | -30 °C +140 °C (according to diaphragm/seal material) |
| Contact | SPDT |
| Body material | Brass – zinc plated steel – AISI 316 |
| Diaphragm/ Seal material | NBR – FKM – Silicone – HNBR – Neoprene – EPDM – Stainless steel (only for PSM2 and PSM10) |
| Threads | G1/8 BSPT – G1/4 BSPT – M10 x 1 – ecc. |
| Protection | IP65 DIN 40050 |
| Mechanical life | 106 operations |
| Dimensions | Body Ch 27 – Max. high 79 |
| Certification | CE – IMQ – RINA – Lloyd’s Register – ATEX |
| Options | Snubber for pressure picks – Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen – Tested for applications with gas – Set-point of pressure and hysteresis – XIA execution |

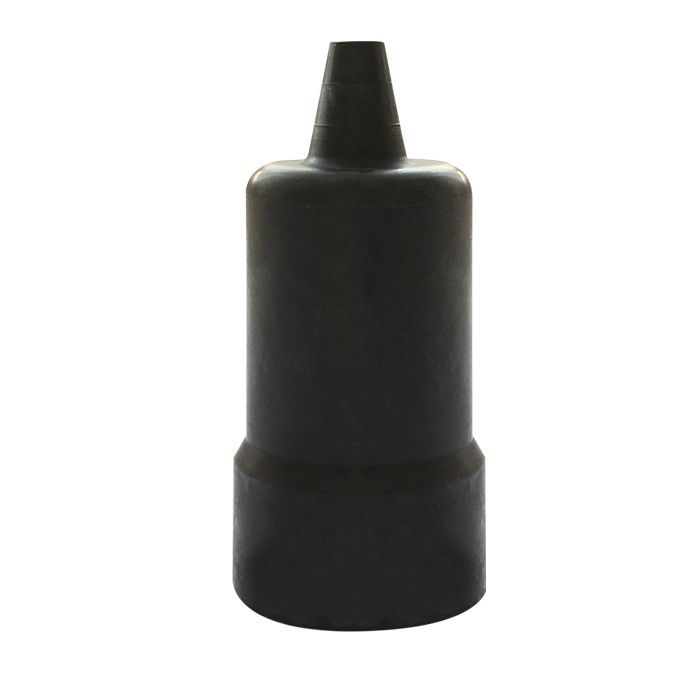

Protection caps
CAP 12
Protection: IP54
Material: NBR
