VCM – Adjustable vacuum switches with screw terminals
DOWNLOAD PDF
REQUEST AN OFFER
SHOP ACQUISTA ORA!Line pressure ready for delivery
- - PTE250GAIWDR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - 1% ACCURACY - MINI DIN 43650 FORM C CONNECTOR - G1/4" PARALLEL THREAD
- - PTE250GAIWMR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE200GAIWMR14 ELECTRONIC TRANSDUCER 0-200 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE100GAIWMR14 ELECTRONIC TRANSDUCER 0-100 BAR 4-20ma - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAIWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAVWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 0-10V - RELATIVE PRESSURE - 1% ACCURACY - M12 CONNECTOR
| Switch rating | 0.5 (0.2) A – 48 Vac-Vdc |
| Electrical connection | Faston 6.3 x 0.8 |
| Working range | -200 -900 mbar |
| Max. static pressure | 20 bar |
| Hysteresis | Fixed |
| Temperature tange | -30 °C +140 °C (according to diaphragm/seal material) |
| Contact | NO – NC |
| Body material | Brass – Stainless steel AISI 316 |
| Diaphragm/ Seal material | NBR – FKM – Silicone – HNBR – EPDM |
| Threads | G1/8 BSPT – G1/4 BSPT – M10 x 1 – M12 x 1.5 – G1/4 BSPP – G/18 BSPP – 1/4 NPT – 1/8 NPT |
| Protection | IP00 fast on – IP54 with CAP 1 and CAP 10 – IP65 with CAP 3 |
| Mechanical life | 106 operations |
| Dimensions | Body Ch 24 – Max. high 69 mm |
| Options | Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen |
Protection caps

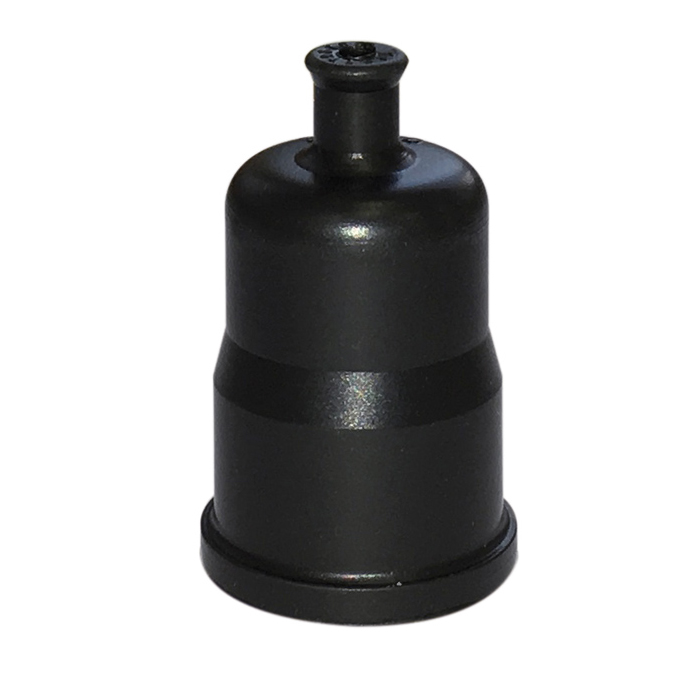

CAP 1
Protection: IP54
Material: NBR – FKM – EPDM

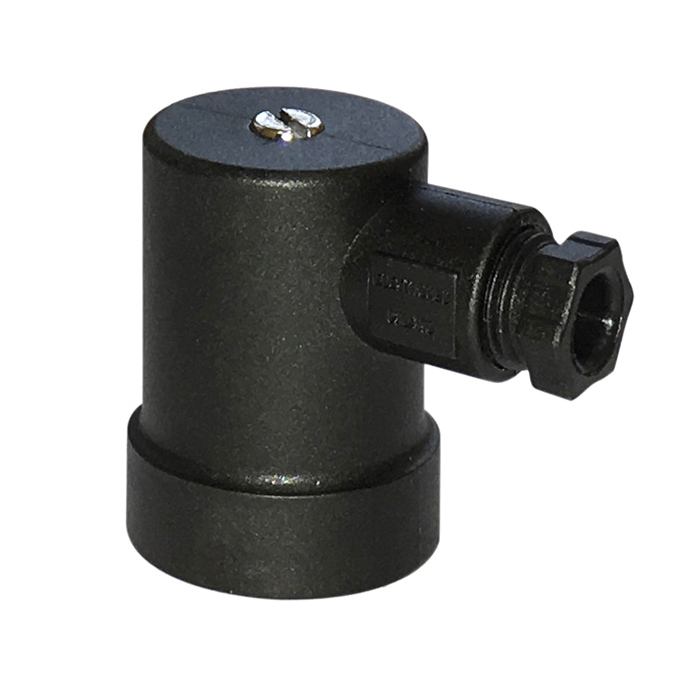

CAP 3
Protection: IP65
Material: Nylon

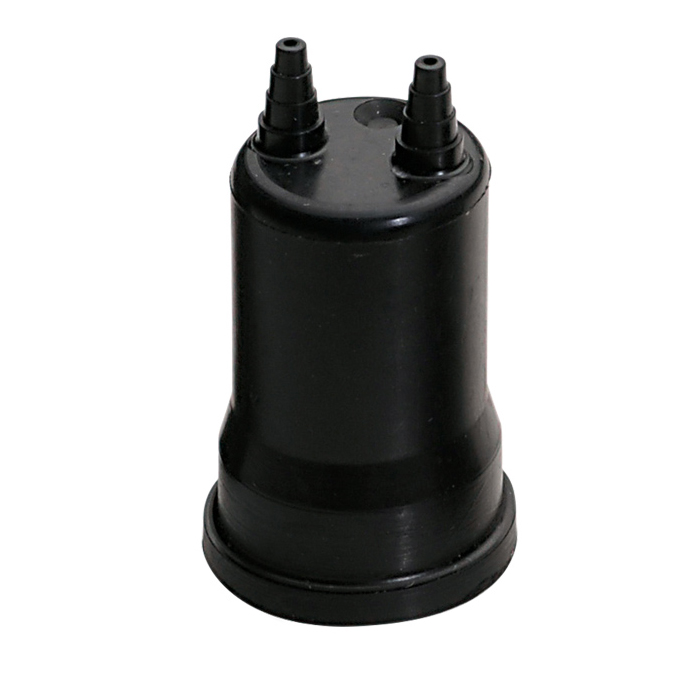

CAP 10
Protection: IP54
Material: NBR
