PHC – Adjustable pressure controllers for low pressure
DOWNLOAD PDF
REQUEST AN OFFER
SHOP ACQUISTA ORA!Line pressure ready for delivery
- - PTE250GAIWDR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - 1% ACCURACY - MINI DIN 43650 FORM C CONNECTOR - G1/4" PARALLEL THREAD
- - PTE250GAIWMR14 ELECTRONIC TRANSDUCER 0-250 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE200GAIWMR14 ELECTRONIC TRANSDUCER 0-200 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE100GAIWMR14 ELECTRONIC TRANSDUCER 0-100 BAR 4-20ma - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAIWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 4-20mA - RELATIVE PRESSURE - A ACCURACY - M12 CONNECTOR
- - PTE10GAVWMR14 ELECTRONIC TRANSDUCER 0-10 BAR 0-10V - RELATIVE PRESSURE - 1% ACCURACY - M12 CONNECTOR
| Switch rating | 4 A / 24 Vdc – 8 A / 12 Vdc – 15 A / 6 Vdc |
| Electrical connection | Faston 6.3 x 0.8 |
| Working range | 35 – 70 mbar – 70 – 200 mbar -200 – 480 mbar – 480 – 900 mbar – 900 – 1600 mbar – 1600 – 3400 mbar – 3400 – 6200 mbar |
| Max. static pressure | 30 bar |
| Hysteresis | Fixed |
| Temperature tange | -20 °C +120 °C (according to diaphragm/seal material) |
| Contact | NO – NC – SPDT |
| Body material | Brass – AISI 316 |
| Diaphragm/ Seal material | NBR – Teflon – EPDM |
| Threads | G1/8 BSPT – G1/4 BSPT – G1/8 BSPP – G1/4 BSPP – 1/4 NPT – 1/8 NPT |
| Protection | IP00 with fast on – IP54 with CAP 30 and CAP 31 |
| Mechanical life | 106 operations |
| Dimensions | Max. high 63 mm |
| Certification | CE – UR |
| Options | Set-point rising and falling – Execution with fast-on – Execution with screw terminals |
Protection caps
CAP 30
Protection: IP54
Material: NBR

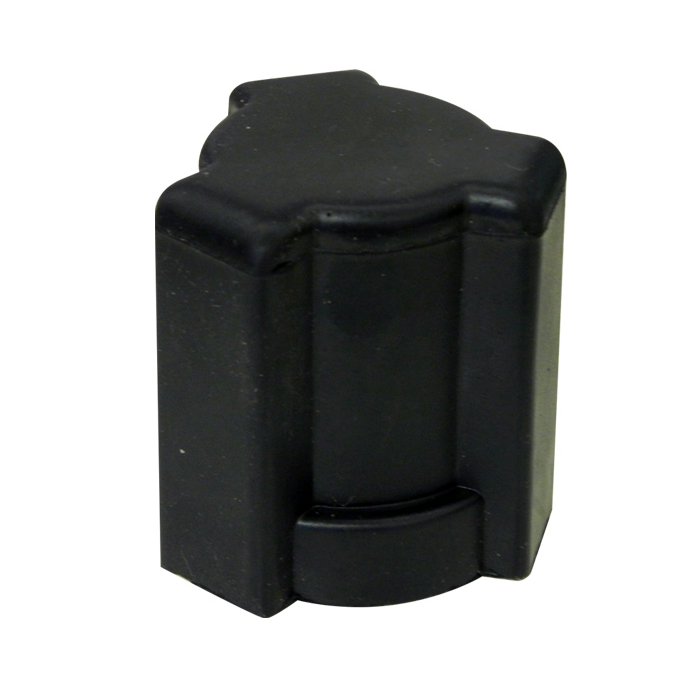

CAP 31
Protection: IP54
Material: NBR
